Step Pins

What you needStep 1 of 2

If your uploaded files contain all required dimensions and tolerances you can skip the step below.

OPTIONS

Upload a CAD File Or Drawing

Click here to upload a zipped file or an image You can upload up to 10 files.

Step Pins



EX


Material


H-13


Surface Hardness


65-74 HRC (Nitrided)


Core Hardness


40-45 HRC


Standard Tolerances


(D) 0.0469 / 0.4844

-0.0003 / -0.0006

(D) 0.5 / 1

-.0003 / -.0008

(H) +0 / -.020


(K)+0 / -0.002


(L) +0.380 / -0


THX


Material


H-13


Surface Hardness


65-74 HRC (Nitrided)


Core Hardness


40-45 HRC


Standard Tolerances


(D) -0.0003 / -0.0006

(D) Lengths > 25"

-.0003 / -.0008

(H)+0 / -.020


(K)+0 / -0.002


(L) +0.380 / -0


C


Material


H-13


Surface Hardness


30-35 HRC


Core Hardness


30-35 HRC


Standard Tolerances


(D) +0.0008 / +0.0003


(H) +0 / -0.020


(K) +0 / -0.002


(L) 0.380 / -0

CX


Material


H-13


Surface Hardness


50-55 HRC


Core Hardness


50-55 HRC


Standard Tolerances


(D)

+0.0008 / +0.0003


(H)

+0 / -0.020


(K)

+0 / -0.002


(L) 0.380 / -0

PCL


Material


Beryllium-free Copper Based Alloy


Surface Hardness


90-98 Rockwell B


Core Hardness


90-98 Rockwell B


Standard Tolerances


(D)

+0.0008 / +0.0003


(H)

+0 / -0.010


(K)

+0 / -0.002


(L) 0.380 / -0

EJP-IMH


Material


M2


Surface Hardness


58-62 HRC


Core Hardness


58-62 HRC


Standard Tolerances


(D)

-0.0003 / -0.0005


(H)

+0 / -0.010


(K)

+0 / -0.002


(L) +0.380 / -0

EJP-ELH


Material


1.2210 (AISI L2 Type)


Surface Hardness


60 +/-2 HRC


Core Hardness


60 +/-2 HRC


Standard Tolerances


Metric Tolerance References


(D)

g6


(H)

+0 / -0.2


(K)

+0 / -0.05


(L) +2 / -0.0

EJP-EHN


Material


1.2344 (AISI H13 Type)


Surface Hardness


~ 68 HRC (Nitrided)


Core Hardness


~44 HRC


Standard Tolerances


Metric Tolerance References


(D) g6

(H)

+0 / -.02


(K)

+0 / -0.05


(L) +2 / -0


CRP-EHH


Material


1.2344 (AISI H13 Type)


Surface Hardness


~44 HRC


Core Hardness


~44 HRC


Standard Tolerances


Metric Tolerance References


(D)

g6


(H)

+0 / -0.2


(K)

+0 / -0.05


(L) +2 / -0.0

CRP-ECS


Material


Beryllium-free Copper Based Alloy


Surface Hardness


94 +/-4 HRB


Core Hardness


94 +/-4 HRB


Standard Tolerances


Metric Tolerance References


(D)

+0.025 / -0


(H)

+0 / -0.25


(K)

+0 / -0.05


(L) +9.5 / -0.0

JFX


Material


SKD61


Surface Hardness


70-72 Rc (HV1000 +/-100)


Core Hardness


40 HRC+/-2


Standard Tolerances


(D)1 / 1.5 mm


-0.005 / -0.012


(D)1 / 1.5 mm


-0.01 / -0.02


(H)-0.05 / -0.15


(K)+0 / -0.02


(L) +4 / +1

P-Pins


Material


H-13


Surface Hardness


65-74 HRC


Core Hardness


47-52 HRC


Standard Tolerances


(D) 0.0307 / 0.4995

0.0000 / -0.0003

(D) 0.5307 / .9995"

.0000 / -.0005

(H)+0 / -.010


(K)+0 / -0.002


(L) +0.062 / -0

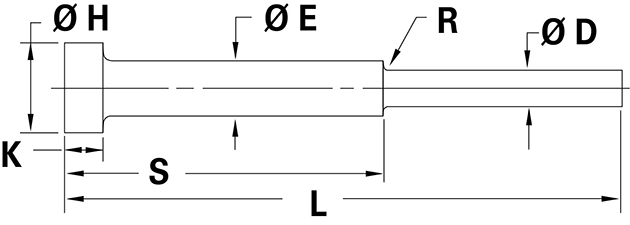

Additional EX Step Pin Dimensions

(E) 000 / -.001

Additional P Step Pin Dimensions

(E) +000 / -.010

(S) +/-0.01

Additional THX Step Pin Dimensions

(E) +.000 / -.001

Additional C Step Pin Dimensions

(E) +.0008 / +.0003

Additional CX Step Pin Dimensions

(E) +.0008 / +.0003

Additional PCL Step Pin Dimensions

(E) +.0008 / +.0003

Additional EJP-IMH Step Pin Dimensions

(E) -.000 / -.010

Additional EJP-EHN Step Pin Dimensions

(E) 0 / -.01 mm

(S) 0 / -1 mm

(R) a 0.8

Additional EJP-ELH Step Pin Dimensions

(E) 0 / -.01 mm

(S) 0 / -1 mm

(R) a 0.8

Additional CRP-EHH Step Pin Dimensions

(E) g6

Additional CRP-ECS Step Pin Dimensions

(E) +0.025 / -0

Additional JFX Step Pin Dimensions

(E) -0.05 / -0.012

DIMENSIONS


Please indicate special instruction, material, hardnesses, coatings, or tolerances here.

TOLERANCES
