Ejector Sleeves Step

What you needStep 1 of 2

If your uploaded files contain all required dimensions and tolerances you can skip the step below.

Upload a CAD File Or Drawing

Click here to upload a zipped file or an image You can upload up to 10 files.

Step Sleeves


SND

Material

H-13

Surface Hardness

65-74 HRC (Nitrided)

Inside Bearing Hardness

65-74 HRC (Nitrided)

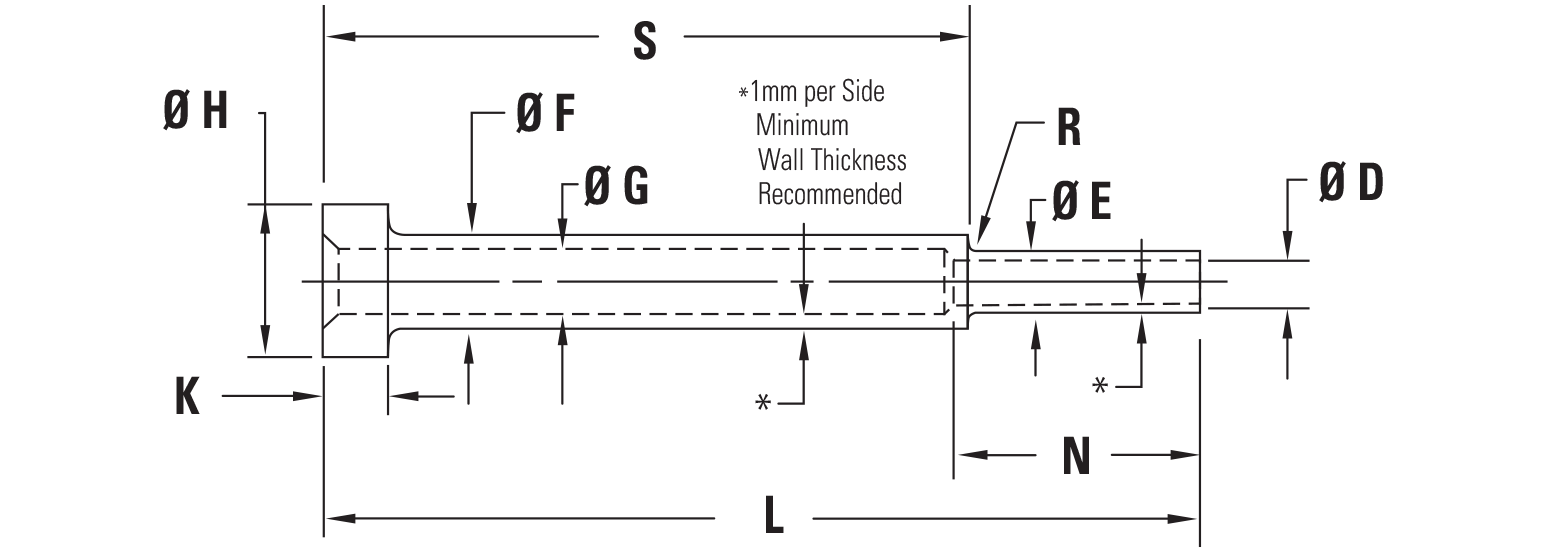

Standard Tolerances

(D) +0.0005 / +0.0001

(E) +0 / -0.001

(F) +0/-0.001

(G) +/-.005

(H) +0/-0.010

(L) +0.030/+0.120

(K) +0/-0.004

(N) +0.12/-0

(S) +0/-0.01

S

Material

H-13

Surface Hardness

65-74 HRC (Nitrited)

Inside Bearing Hardness

30-35 HRC

Standard Tolerances

(D) +0.0005 / +0.0001

(E) +0 / -0.001

(F) +0 / -0.001

(G) +0 / -0.005

(L) +0.030/+0.120

(H) +0 / -0.004

(K) +0/-0.004

(N) +0.12 / -0

(S) +0/-0.01

DIMENSIONS


Please indicate special instruction, material, hardnesses, coatings, or tolerances here.

TOLERANCES

Sleeves
