Ejector Sleeves Straight

What you needStep 1 of 2

If your uploaded files contain all required dimensions and tolerances you can skip the step below.

Upload a CAD File Or Drawing

Click here to upload a zipped file or an image You can upload up to 10 files.

Straight Sleeves


SND

Material

H-13

Surface Hardness

65-74 HRC (Nitrided)

Inside Bearing Hardness

65-74 HRC (Nitrided)

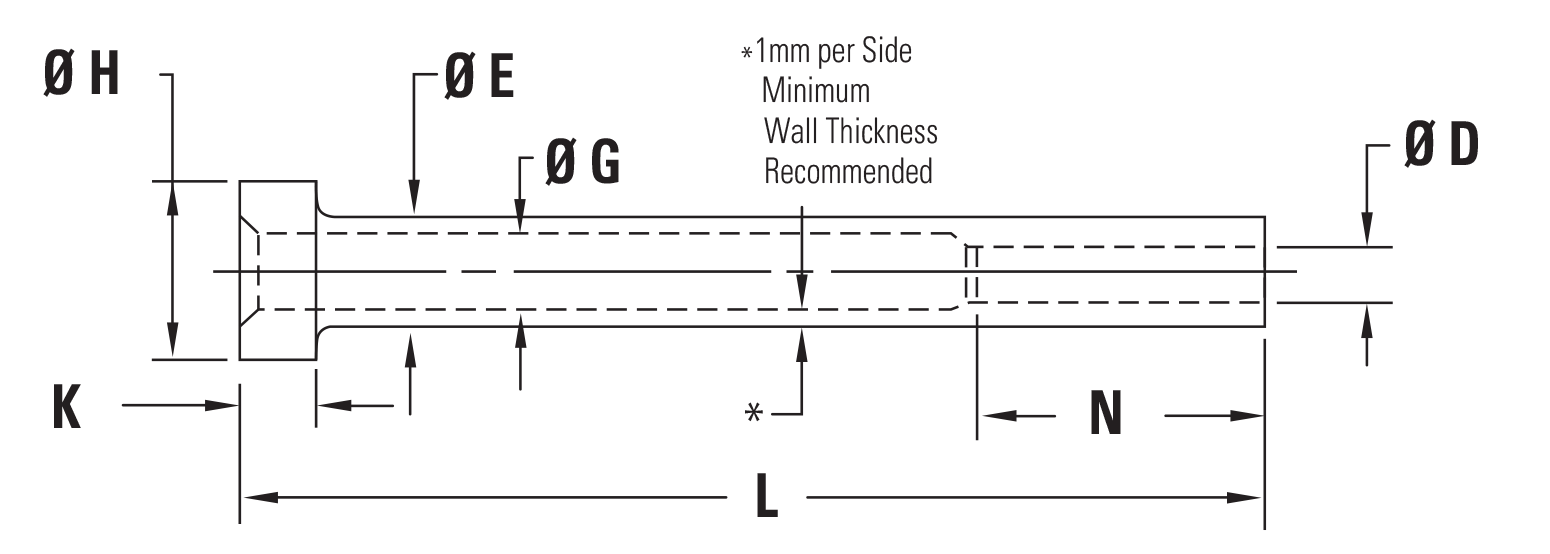

Standard Tolerances

(D) +0.0005 / +0.0001

(E) +0 / -0.001

(G) +/-.005

(H) +0/-0.010

(L) +0.030/+0.120

(K) +0/-0.004

(N) +0.12/-0

(S) +0 / -0.01

S

Material

H-13

Surface Hardness

65-74 HRC (Nitrited)

Inside Bearing Hardness

30-35 HRC

Standard Tolerances

(D) +0.0005 / +0.0001

(E) +0 / -0.001

(G) +/-.005

(L) +0.030/+0.120

(H) +0/-0.010

(K) +0/-0.004

(N) +0.12 / -0

EJS-EHN

Material

1.2344 (AISI H13 Type) Steel

Surface Hardness

~68 HRC

Inside Bearing Hardness

~68 HRC

Standard Tolerances


Metric Tolerance References

(D) H5

(E) g6

(L) +2/0

(N) +3.04/-.0

(H) +.00/-.025

(K) +.00/-.05

(G) D+0.5mm (+/-.127mm)

EJS-ELH

Material

1.2210 (AISI L2 Type) Steel

Surface Hardness

~60 +/- 2 HRC

Inside Bearing Hardness

~60 +/- 2 HRC

Standard Tolerances


Metric Tolerance References

(D) H5

(E) g6

(L) +2/0

(N) +3.04/-.0

(H) +.00/-.025

(K) +.00/-.05

(G) D+0.5mm (+/-.127mm)

JES

Material

SKD61

Surface Hardness

900HV˜ (Nitrided)

Inside Bearing Hardness

38-42 HRC

Standard Tolerances

(D) H7

(G) H7

(E) ≤ 10.0 -0.01/-0.02

(E) ≥12.0 -0.01/-0.03

(L) +5.0/+0.1

(N)

(H) 0/-0.2

(K) 0/-0.05

DIMENSIONS


Please indicate special instruction, material, hardnesses, coatings, or tolerances here.

TOLERANCES

Sleeves
