Thin Wall Sleeves

What you needStep 1 of 2

If your uploaded files contain all required dimensions and tolerances you can skip the step below.

Quantity *

Upload a CAD File Or Drawing

File Upload

Click here to upload a zipped file or an image You can upload up to 10 files.

TWS

Material

Electroless Nickel Coated A2

Surface Hardness

58-60 HRC

Standard Tolerances

(D) +0.0003 / -0.0000

(E) -0.0003 / -0.0007

(K) +0.000/-0.002

(H) +0.00/-0.01

(L) +0.003/-0.000

(N) +0/-0.010

(S) +0.01/-0.01

(G) +0.000/-0.001

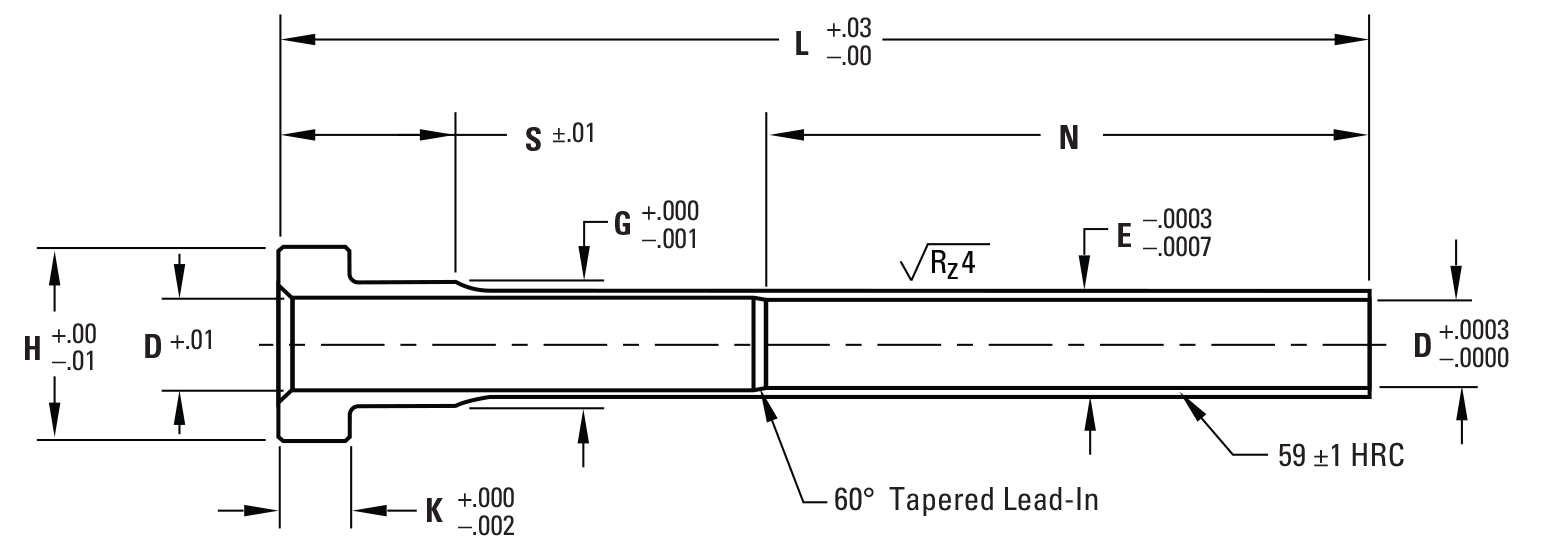

DIMENSIONS

Diameter (ØD)

Diameter (ØE)

Head Thickness (K)

Head Diameter (ØH)

Overall Length (L)

Bearing Length (N)

For all diameters less than 1/8, N =1.75. For diameters 5/32 and larger, N = 2.5”.

Shoulder Length (S)

Shoulder Diameter (ØG)

Notes

Please indicate special instruction, material, hardnesses, coatings, or tolerances here.

TOLERANCES

All Standard Tolerances
